470Gsm PVC Laminated Tarpaulin – LPT1073/470
470Gsm PVC Laminated Tarpaulin – LPT1073/470

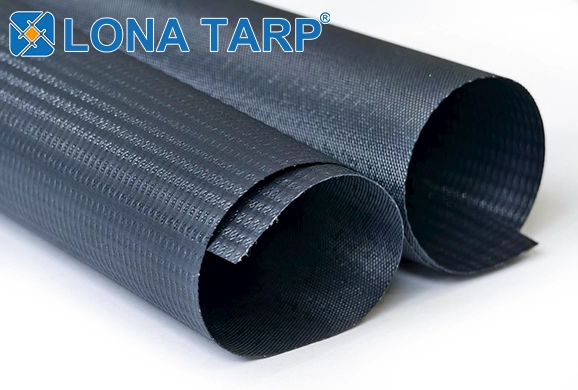

This 470gsm black vinyl tarpaulin is crafted with a robust 300Dx500D 18×12 polyester base fabric, offering excellent light blocking, UV resistance, and anti-mildew properties. Ideal for lightweight temporary structures such as event tents, it ensures durability and reliable weather protection.
For manufacturers seeking competitive 3D tarpaulin price, this material provides outstanding value without compromising on tear strength or functional performance, making it perfect for producing cost-effective shelter solutions.
Fire Retardant
Weldable
Tear Resistant
Anti-UV
Weather Ability
Longlife Time
LonaTarp® 0.38mm 3D Tarpaulin Price Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 470 Gsm/m² 13 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 300*500D 18*12/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 410/242 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 193/168 N/5cm | DIN 53363 |
| Adhesion | 10 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Tent | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Terpal PVC Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
