Custom Finished Vinyl Tarps

From dimensions and materials to eyelets and colors, we manufacture to your specifications, ensuring a perfect fit and superior performance.

Home > Finished Tarps

Premium Custom Made Heavy Duty Vinyl Tarps, Engineered for Your Exact Needs.

“Standard sizes cannot perfectly cover your equipment?” “Worried that the durability of ready-made products cannot withstand harsh environments?” “Need special fireproof, mold-proof, or anti-chemical properties?” “Troubled by looking for a cover solution for specially shaped assets?” Are you currently facing these problems?

LonaTarp® provides detailed custom made vinyl tarp production steps. Simply tell us your product requirements, then choose from numerous options: including vinyl tarp material selection, finished product size, grommet spacing, hem finishing and fastener selection. If you require a quote for printing or design, please send your sketches to us via email, and we will provide you with a free quote immediately.

From seamless flat coverage to precise 3D wrapping of complex structures, we provide heavy-duty vinyl tarps in various colors; they are specifically designed to handle the most demanding industrial, construction, agricultural, and logistics environments.

Unlike general PVC tarp retailers, LonaTarp® fully and independently controls the entire production process: from custom PVC tarp rolls to the completion of the final tarp product, we independently complete all steps including cutting, welding, sewing, installing grommets, and sourcing hardware accessories. This vertical integration ensures highly competitive prices.

PVC Tarp

Vinyl Mesh Tarp

Clear Mesh Tarp

Clear Vinyl Tarp

PVC Tarp

China PVC vinyl tarps are constructed with high-density polyester scrim, coated on both sides (or single side) with heavy-duty industrial-grade vinyl, delivering superior waterproofing, tear resistance, UV protection, and weatherproof performance.

Standard Tarp Weights

14 oz vinyl tarps, 18 oz vinyl tarps(best-seller), 22 oz heavy duty vinyl tarps, and 40 oz super duty vinyl tarps. However, we offer custom vinyl tarps heavy duty from 8 oz to 74 oz.

Waterproof Tarp Colors

Based on sustained market preference, we consistently stock these core colors: red, yellow, blue, green, orange, pink, gray, white, and black. Our most popular options remain the black vinyl tarp and the white vinyl tarp.

Note: LonaTarp® supports custom color matching via Pantone, RAL, or NCS systems/physical samples, plus custom surface printing and 3D embossing on heavy duty waterproof vinyl tarps. Customization options.

Vinyl Mesh Tarp

Vinyl mesh tarp uses 70% PVC + 30% polyester yarn as its core base material, and through its mesh weaving structure, achieves a breakthrough balance of breathability, tear resistance, and lightweight performance.

This structure features a visible white polyester grid layer embedded within the vinyl coating, which significantly enhances longitudinal tensile strength while maintaining ≥65% light transmittance and ≥180L/m²/s air permeability. This effectively resolves issues inherent in traditional impermeable tarps.

Common Specifications: 130Gsm, 230Gsm, 250Gsm, 270Gsm, 420Gsm, 550Gsm.

The white polyester grid layer, combined with dual-sided waterproof coating and UV stabilizer treatment, ensures long-term anti-aging performance under sustained sun exposure and rain. Compliance with EN13501-1 Class B1 / NFPA 701 fire-retardant certifications and REACH SVHC environmental standards meets stringent safety requirements for industrial, construction, and agricultural applications.

Clear Mesh Tarp

The Clear Mesh Tarp (Transparent Mesh Tarpaulin) features an interwoven white polyester grid layer that enhances structural reinforcement while maintaining light transmission. Compared to standard clear PVC tarpaulins, it offers superior tear resistance, though with moderately reduced transparency. This makes it ideal for industrial, agricultural, and construction applications where eliminating the enclosed feeling is essential while maintaining fundamental protection.

The clear mesh tarp is constructed from PVC-coated polyester grid fabric with customizable grid density and is available in multiple thicknesses: 12, 16, 20, 28, and 35 mil.

It is UV-stabilized and features a dual-sided waterproof coating, offering over 70% light transmittance, 1,000mm water column resistance (JIS L1092), and Grade 8 wind load capacity when anchored.

The tarp meets EN13501-1 B1 / NFPA 701 fire-retardant standards and REACH SVHC environmental requirements, making it suitable for food processing areas.

Compared to solid clear vinyl tarps of similar thickness, it provides superior longitudinal tear strength and is 30–40% lighter, though lateral puncture resistance is lower. For high-wind or sharp-object environments, increasing anchor points or using a cushioning liner is recommended.

Clear Vinyl Tarp

Clear vinyl tarps are meticulously manufactured using a large 5.1-meter wide calender, and innovatively employs a water-cooling process for precise cooling. This critical technique not only ensures uniform material stability but also imparts the crystal-clear brilliance and unparalleled visual clarity that define our clear PVC vinyl tarp.

Available in thicknesses of 12 mil, 16 mil, 20 mil, 28 mil, and 35 mil. Complies with FR (Fire-Retardant) ratings, making it suitable for industrial curtains.

Commonly used for adding transparent viewing windows to vinyl tarpaulins, canvas covers, or barrier fences. Also suitable for transparent coverings, greenhouses, or clear patio enclosures. This allows you to maintain coverage and safety while enjoying clear visibility.

Vinyl Coated Polyester Tarp Automatic Cutting

LonaTarp® primarily uses CNC oscillating knife cutters. The main working principle involves a blade vibrating rapidly up and down (thousands of times per second), driven by a motor, simulating the action of a PVC fabric cutter. The entire cutting head is controlled by a precision CNC system and moves along a pre-designed path on the tarp vinyl material surface to perform cutting. This method is suitable for mass production of almost all types of PVC tarpaulin products, such as truck tarps, tents, inflatable boats, advertising banner materials, and more.

Automatic cutting of tarp vinyl has completely revolutionized traditional methods that relied on templates, manual marking, and hand-cutting tools (such as scissors or blades). By transmitting digital design files (e.g., CAD drawings) directly to computer-controlled cutting equipment, it enables a highly precise, efficient, and repeatable cutting process.

Planar Coverage Dimensions and Shape

In the field of flat surface customization, we support full-width, seamless customization ranging from 1 meter to 3.2 meters in width (eliminating the water seepage risks associated with traditional seams), with continuous production lengths exceeding 1000 meters without joints.

Through CNC cutting machines, we achieve single-pass cutting for rectangles, circles, trapezoids, and even irregular polygons. Simply tell us the tarp vinyl desired shape and dimensions (length, width).

3D Seamless Covering Systems

Traditional vinyl tarp covering solutions, when dealing with complex three-dimensional structures, typically rely on cutting multiple pieces of material and sewing them together on-site. This process inevitably introduces seams, which creates potential leakage points, leads to uneven structural strength, compromises overall aesthetics, and results in a cumbersome installation.

The core concept of the vinyl tarps heavy duty 3D seamless covering solution is to completely this traditional approach. It aims to create a custom-made, complete “garment” for the object, achieving a highly fitted, single-component style cover. Its essence lies in utilizing 3D digital design and advanced manufacturing technologies to directly shape high-performance super heavy duty vinyl tarps into complex curved surfaces that perfectly match the target object’s geometry, ultimately achieving a seamless, integrated, highly durable, and visually clean perfect covering result.

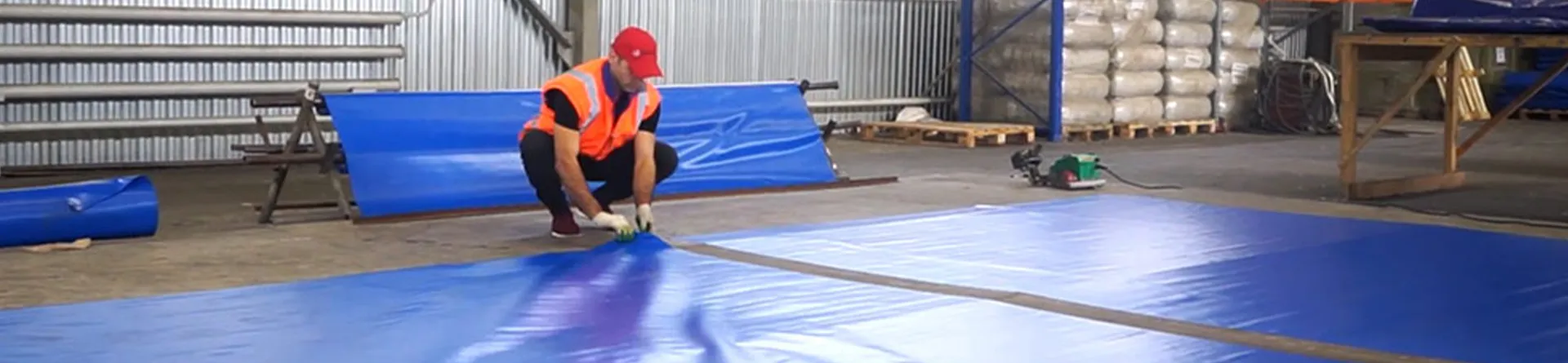

Vinyl Coated Polyester Tarp Welding

The heat welding vinyl tarp is the core and critical process within the entire production flow. Its quality directly determines the final product’s waterproof sealing performance, overall structural strength, and long-term environmental durability.

Fundamentally, welding vinyl tarp is a physicochemical process based on thermal energy: through precisely controlled heat (typically from hot air, high-frequency electromagnetic fields, or heated molds), the synthetic materials on the surface of the PVC coating and its base fabric are locally brought to a molten state. Subsequently, under controlled external pressure, the two molten interfaces thoroughly interpenetrate, intertwine, and fuse together.

After cooling and solidification, the originally separate materials form a dense, continuous, and robust unified connection at the molecular level. This achieves mechanical properties superior to traditional sewing and absolute watertightness. Loantarp® is commonly used vinyl tarp welding tools are these:

Hot Air Welding

Hot air welding vinyl coated polyester tarp utilizes a hot air welder that generates a high-temperature airstream (typically adjustable between 0-700°C) via an electric heating element. This airstream is precisely directed onto both the specific area of the PVC tarpaulin to be welded and a dedicated PVC welding rod. The intense heat instantly melts the surfaces of the parent material (the tarpaulin seam) and the welding rod, bringing them to a molten state.

The operator then uses a roller at the front of the welder or a separate pressing wheel to apply even pressure, forcing the molten welding rod into the seam of the base material. At this stage, the molten PVC molecules from the rod and the parent material interpenetrate and fuse.

Upon removal of the heat source, the materials cool rapidly, and the molecular chains re-solidify, forming a robust, monolithic weld seam.

High-Frequency Welding / RF Welding

High-frequency welding vinyl coated polyester tarp is the preferred method for achieving the highest strength and air tightness. It is a highly efficient technique based on the molecular properties of the material. The two or more layers of PVC tarpaulin to be welded are precisely overlapped and placed on the lower electrode (die). The upper electrode (often also a die) descends, clamping the materials firmly together.

A high-frequency generator creates an electromagnetic field oscillating tens of millions of times per second, which penetrates the materials. PVC molecules are polar; in this high-frequency alternating field, they vibrate, rotate, and collide with intense friction, generating heat uniformly within the material itself. This is the fundamental difference from all external heating methods.

The internal PVC rapidly melts, and under the preset electrode pressure, the layers fuse intimately. The high-frequency energy is then switched off, while pressure is maintained momentarily. The molten zone cools and solidifies, forming a seamless and homogeneous weld. The shape of the electrode dies directly determines the geometry of the weld seam (such as a straight line, zigzag, dots, etc.).

Hot Wedge Welding

This is an automated continuous welding process focused on long, straight seams, commonly found in large-scale production lines. At its core is an electrically heated “hot wedge” (typically a piece of titanium or stainless steel with a specific profile). The two layers of vinyl coated tarps are fed from above and below the hot wedge, whose front edge is inserted between them. Its heat directly melts the surfaces of the materials.

Immediately behind the hot wedge, one or more pairs of pressure rollers (such as a drive roller and idler roller) apply significant force to the freshly melted vinyl coated tarp materials, pressing them together. This process is continuous; as the material is fed forward, a consistent and uniform weld seam is formed. The shape of the hot wedge determines whether a single or dual parallel weld seam is created.

Sewing Vinyl Tarp Material

While high-frequency welding offers optimal waterproofing, sewing remains an extremely important and irreplaceable process in vinyl heavy duty tarp manufacturing, particularly for applications requiring extremely high structural strength, flexible connections, or complex assembly.

Sewing vinyl tarp material is entirely different from sewing ordinary textiles; It places special demands on equipment, thread, and technique. Standard household or light industrial sewing machines are not suitable for this task. It is essential to use specialized industrial heavy-duty walking-foot sewing machines or high-lift sewing machines.

Since needle punctures create water leakage paths, all sewn PVC tarpaulins must undergo a waterproof sealing treatment. There are two primary methods: heat-sealing tape and applied sealant.

The heat-sealing tape method primarily involves covering the back of the stitched seam with a special PVC-based tape. A hot air welder or a dedicated heat press is then used to heat the tape, causing it to melt and fuse with the tarpaulin substrate.

The applied sealant method involves coating both the front and back of the stitched seam (especially the needle holes) with a specialized PVC sealant (a viscous liquid).

Best Vinyl Tarp Materials Hardware Fittings

The hardware fittings along the tarpaulin edge are indispensable core components of the entire vinyl tarp material system. Their performance and quality directly determine the tarpaulin’s overall performance in practical applications. These fittings are not merely simple connectors; they are critical elements that bear mechanical stress, ensure sealing effectiveness, extend product lifespan, and optimize the user experience.

They serve four primary functions: Securing, Protecting, Tensioning and Connecting. The appropriate selection of hardware fittings, the weather resistance of their materials, and their (collaborative design) with the tarpaulin body directly impact the safety, durability, and functional integrity of the entire protective system.

No Grommets

Grommets Top

Grommets Top & Bottom

Grommets All Sides

Pockets Top & Bottom

Grommets Top Pockets Bottom

Grommets Bottom Pockets Top

Grommets Top & Sides Pocket Bottom

Fixed-Type Accessories

Fittings such as D-rings and grommets anchor the vinyl tarp material to external structures through riveting or stitching. They withstand the dynamic tensile forces caused by environmental loads like wind, rain, and snow, ensuring the vinyl tarp material remains secure without displacement or loosening under harsh conditions.

(Twist Locks)

18kN Strength; 1-Seconds Locking; Extreme Temp Resistance.
IP67 Sealed; Marine-Grade Anti-Corrosion.

(Vinyl Tarp with Grommets)

Standard Hole Diameter: Φ12mm / Φ15mm.
Reinforced Version: Double vinyl padding.

(Vinyl Tarps with d rings)

Spacing: Typically spaced at every 30-60cm.
Material: Galvanized steel / Stainless steel (rust-resistant).

(Screw Snaps)

15s Tool-Free Operation; Vibration-Proof Thread; 10k Cycles.
Extreme Temperature Resistant; IP69K Rated.

Protective Fittings

The core of the “Protection Function” lies in the use of additional fittings. These fittings are designed to bear the brunt of abrasion, impact, and stress, thereby sacrificially protecting the main pvc vinyl tarp material samples and significantly extending its service life.

This is particularly critical because the edges and stress points are the most vulnerable areas of a tarpaulin and are most prone to failure.

Anti-Tear Protection

(Reinforcement Patches)

A reinforced patch on the PVC tarp’s back that distributes pulling force from hardware over a wider area to prevent ripping. Made from standard or heavy-duty materials like leather or UHMWPE fabric.

Anti-Abrasion Protection

(Corner Protectors)

These are specifically designed to protect the vinyl tarp’s most vulnerable four corners. Typically made from tougher plastic or rubber, they wrap around the tarpaulin corners to prevent them from being snagged, abraded, and torn.

(Wear Pads / Rubbing Patches)

These are additional layers of vinyl PVC tarp material that are sewn or welded onto areas of the tarpaulin most prone to friction, such as the bottom edges, corners, and points of contact with ropes. They act as a “sacrificial layer”, taking the brunt of the wear and tear. When they become worn out, they can be replaced, while the main PVC vinyl tarp body remains intact and undamaged.

Edge Structure Protection

(Bias Tape / Edge Binding)

Although it is not traditionally considered “hardware,” it is crucial for protection. This is a fabric strip that wraps around the raw edge of the super heavy duty vinyl tarp and is sewn firmly in place. It prevents moisture from seeping into the base fabric through the edge, protects against abrasion and fraying, and gives the edge a neater, more professional appearance.

Tensioning Function

The primary function of tensioning is to provide an adjustable mechanical means to pull the vinyl polyester tarp is edges or specific points taut and secure them to a frame or structure. This eliminates slack and wrinkles, resulting in a smooth, tight, and wind-resistant surface.

(Draw Cord for Tarpaulin)

This is the most fundamental function of the lashing rope. It securely anchors the vinyl polyester tarp to trucks, racks, supports, or other external structures, preventing the cover from shifting or becoming detached due to wind force, vehicle movement, or accidental impact.

(Cord Lock for Tarpaulin)

The core design purpose of a vinyl polyester tarp rope lock is to provide a fast, labor-saving, and secure method to tension the tie-down rope and lock it securely under any amount of tension, preventing it from accidentally loosening.

(Buckle Straps for Tarpaulin)

A high tear strength vinyl tarp buckle strap is a complete fastening system that integrates quick-tightening, secure locking, and convenient release functions. Its core functionality far exceeds that of simple ropes, making it one of the most efficient and reliable solutions for modern tarpaulin securing.

(Oversized Grommets)

The oversized grommet is a heavy-duty reinforcement component in a large vinyl tarp system, and its function extends far beyond being a simple rope hole. Its core design purpose is to address the potential failure of standard grommets under extreme pressure.

Connection Function

The connection function involves joining multiple tarps together or attaching a lightweight vinyl tarps to other objects (such as truck doors or frames) in a fast, reliable, and often weather-resistant manner. This creates a larger coverage area or allows access for personnel and equipment.

(Velcro Split)

It consists of two strips: a hook strip and a loop strip. They are sewn or welded onto the two lightweight vinyl tarps that need to be connected, and adhere firmly when pressed together. This system is ideal for applications requiring frequent, quick opening/closing without the need for absolute waterproofing, such as access flaps on equipment covers or overlapping sections on truck tarps. Its key advantages are silent operation and exceptional convenience.

(Zipper Split)

It creates a completely sealed connection, preventing the passage of gas or liquid. The teeth are typically large plastic or nylon and are coated for waterproofing. A waterproof sealing tape is bonded to the back of the zipper via high-frequency welding onto the outdoor vinyl tarp, sealing the needle holes. An external storm flap is usually installed over the zipper to further prevent water ingress.

Printing Custom Vinyl Tarps

Vinyl laminated tarp printing is a critical technology in the fields of outdoor advertising and industrial signage. Its application extends far beyond simple pattern presentation, representing a systematic engineering effort that must withstand extreme environmental conditions. The core requirements, strong adhesion and exceptional weather resistance, directly determine the service life and effectiveness and value of the printed product.
