610Gsm PVC Tarpaulin Blockout – LPT1002/610
610Gsm PVC Tarpaulin Blockout – LPT1002/610

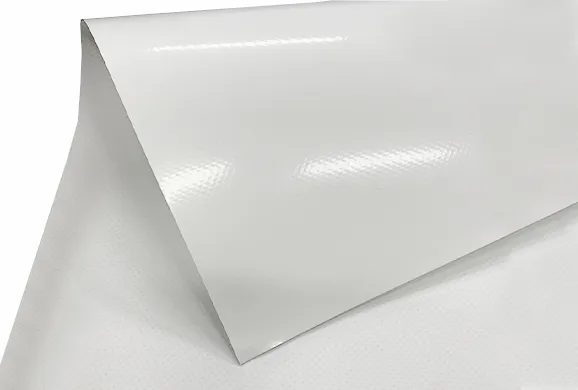

610gsm PVC Material (≈18oz/yd²), significantly heavier than standard 510gsm tarpaulins. Tear and puncture resistance are effectively enhanced, maintaining structural integrity even in extreme wind and rain conditions.
This 610gsm PVC tarpaulin adopts a triple-layer composite process + high-density base fabric, completely blocking UV and visible light with over 99% indoor darkness, meeting demanding light-blocking requirements for warehouses, temporary theaters, medical tents, etc.
LonaTarp® offers a maximum width of 3.2 meters (can be slit to order), greatly reducing seam connections. This improves overall waterproofness and aesthetics of PVC tents while lowering installation costs. Simultaneously, the 18oz vinyl tarp complies with B1 fire-retardant standard, substantially enhancing tent safety. This product uses a lamination process and achieves a waterproof performance of 1000Pa without leakage.
Fire Retardant
Weldable
Tear Resistant
Anti-UV
Weather Ability
Longlife Time
LonaTarp® 610Gsm PVC Material Blackout Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 610 Gsm/m² 16 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1000D 9×9/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 1390/1150 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 200/160 N/5cm | DIN 53363 |
| Adhesion | 100 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Storage Tents | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
