300Gsm PVC Coated Mesh – LPT1015/300
300Gsm PVC Coated Mesh – LPT1015/300

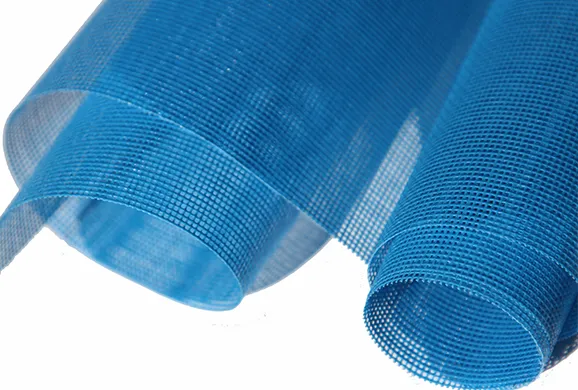

This 300Gsm 1000D 14×14 Blue PVC Coated Mesh Fabric sets a benchmark in industrial-grade protective materials. Woven from 1000-denier high-tensile polyester yarns in a 14×14 mesh count, it delivers exceptional tear and tensile strength, while the 300Gsm weight ensures superior thickness, rigidity, and durability. Dual-sided PVC coating provides complete waterproofing, UV resistance, and anti-aging properties, maintaining colorfastness in harsh outdoor environments. The distinctive blue color offers both visual appeal and safety visibility.
Engineered for demanding scenarios, this fabric excels as construction fencing, machinery covers, cargo protection, agricultural windbreaks, and truck tarpaulins. Its balanced mesh structure allows airflow to reduce wind load while blocking debris, dust, and moderate impacts. Choosing this 300Gsm specification guarantees extended service life and load-bearing capacity far beyond standard meshes, translating to reliable, cost-efficient protection that maximizes your investment across diverse projects.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® 300Gsm PVC Coated Mesh Fabric Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 300 Gsm/m² 8.8 OZ/YD² | DIN EN ISO 2286-2 |
| Base Fabric | 100%PES 1000D 14x14/inch | DIN EN ISO 2060 |
| Tensile Strength (warp/weft) | 1940/1620 N/5cm | DIN 53 354 |
| Tear Strength (warp/weft) | 490/420 N/5cm | DIN 53 363 |
| Light Fastness | >6 | DIN EN ISO 105 B02 |
| Temperature Resistance | -30℃ / +70℃ | DIN EN 1876-2 |
| Flame Retardancy (Optional) | B1, M2 | EN 13501 |
| Length(Optional) | 50M/ 100M | |
| Width(Optional) | Max 3.2M | |
| Application | Construction, Safety Nets | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Terpal PVC Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
