850Gsm PVC Laminated Tarpaulin – LPT1081/850

printable pvc tarpaulin 0.68mm 500D 18×20

850Gsm PVC Laminated Tarpaulin – LPT1081/850

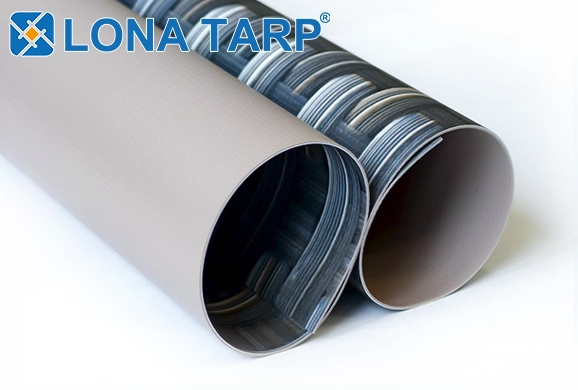

Our 850gsm printable PVC tarpaulin is crafted from a robust 500D 18×20 polyester fabric, specifically designed for PVC luggage and case solutions. It delivers exceptional waterproof, tear-resistant, and abrasion-resistant properties, ensuring it maintains its integrity and appearance even under harsh conditions.

Furthermore, its smooth surface is optimized for high-quality printing, allowing manufacturers to add clear patterns and brand logos to truck covers, industrial tarps, and temporary shelters. Combining strength, durability, and print adaptability, this printable PVC tarpaulin is an ideal fabric choice for manufacturers seeking both functionality and promotional value.

LonaTarp® 0.68mm Printable PVC Tarpaulin Product Specifications

Fabric Properties	Parameters	Testing Method
■ Technical properties
Total Weight	850 Gsm/m² 25 OZ/YD²	DIN53352/ BS3424
Base Fabric	100%PES 500D 18*20/inch	DIN EN ISO2060/ DIN53853
Tensile Strength (warp/weft)	1610/1480 N/5cm	ISO1421
Tear Strength (warp/weft)	270/220 N/5cm	DIN 53363
Adhesion	180 N/5cm	DIN 53357
Temperature Resistance	-30℃ / +70℃	DIN53372
Number of Flexes	>50,000	DIN53359A
Flammability(Optional)	DIN4102:B1, NFPA701, M2
Max Width	3.2M (10.50Feet)
Application	PVC Bags
All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures.
