270Gsm PVC Cotead Mesh – LPT1055/270
270Gsm PVC Cotead Mesh – LPT1055/270

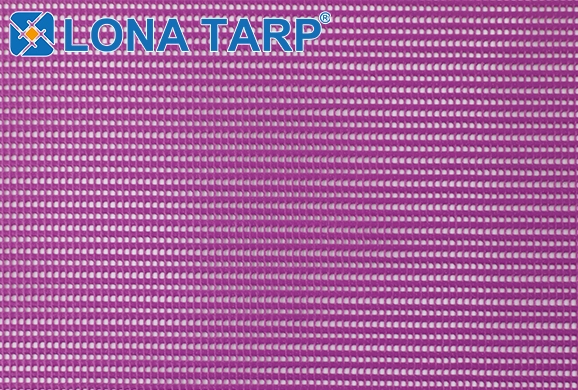

Engineered for safety and resilience, our PVC Mesh Fabric combines robust functionality with critical site protection. Crafted from a 270g purple vinyl-coated polyester base with reinforced 500D*1000D 18×12 cross-weave yarns, this high-tensile mesh delivers exceptional wind permeability—dissipating wind pressure to prevent structural stress on scaffolding wraps, debris nets, and perimeter fencing. Its UV-stabilized grid structure ensures long-term durability against tearing and abrasion, while the vibrant purple hue enhances jobsite visibility for accident prevention. Ideal for harsh construction environments, it actively shields workers from falling debris and adverse weather without compromising airflow. Reduce installation time and maintenance costs with this lightweight yet rugged safety solution—custom sizes and coatings available to meet project-specific demands.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® 270Gsm PVC Mesh Fabric Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 270 Gsm/m² 8 OZ/YD² | DIN EN ISO 2286-2 |
| Base Fabric | 100%PES 500Dx1000D 18x12/inch | DIN EN ISO 2060 |
| Tensile Strength (warp/weft) | 1514/1558 N/5cm | DIN 53 354 |
| Tear Strength (warp/weft) | 359/365 N/5cm | DIN 53 363 |
| Light Fastness | >6 | DIN EN ISO 105 B02 |
| Temperature Resistance | -30℃ / +70℃ | DIN EN 1876-2 |
| Flame Retardancy (Optional) | B1, M2 | EN 13501 |
| Length(Optional) | 50M/ 100M | |
| Width(Optional) | Max 3.2M | |
| Application | Safety & Protection | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Tarpaulin Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
