1050Gsm PVC Sem-Cotead Tarpaulin – LPT1111/1050
1050Gsm PVC Sem-Cotead Tarpaulin – LPT1111/1050

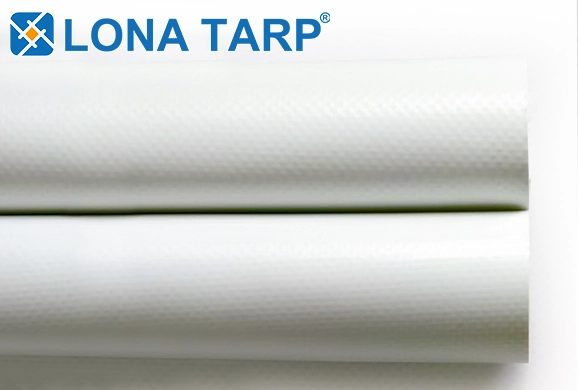

Engineered for permanent structural applications, this heavyweight 1050gsm white semi-coated tarpaulin features an ultra-dense 1300D polyester base with a tight 30×32 weave, delivering exceptional tensile strength and dimensional stability essential for tensile fabric architecture. The advanced PVDF surface treatment ensures superior self-cleaning properties, enhanced UV resistance (UPF 50+), and enduring color fastness, making it ideal for stadium roofs, airport canopies, and artistic facades where aesthetics meet long-term durability .
Customize this robust tensile fabric architecture solution with specialized properties like B1 fire retardancy , anti-microbial coatings, or custom printing for branding needs. Its semi-coated construction balances weatherproof integrity (-30°C to 70°C) with flexibility for complex designs, providing architects a low-maintenance, high-performance material for innovative building envelopes that withstand extreme weather and mechanical stress over decades.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® 0.8mm Tensile Fabric Architecture(PVDF) Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 1050 Gsm/m² 30.8 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1300D 30*32/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 5327/5392 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 1065/1015 N/5cm | DIN 53363 |
| Adhesion | >100 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Tensile Architecture | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
