300Gsm PVC Coated Mesh – LPT1043/300
300Gsm PVC Coated Mesh – LPT1043/300

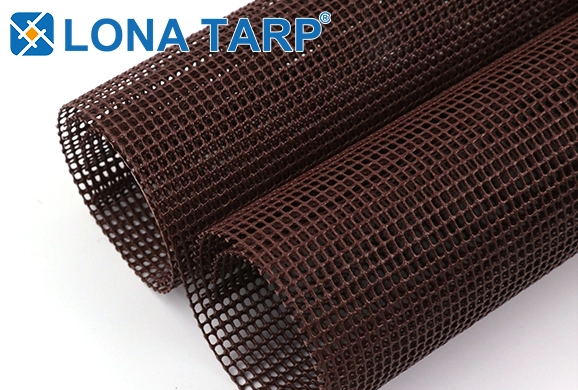

Engineered with a heavy-duty 150D 12×10 polyester scrim base, this robust fabric delivers exceptional tear resistance and structural stability. The specialized mesh design provides crucial wind permeability, effectively reducing wind load pressure on structures while maintaining superior debris containment.
This industrial-grade mesh tarp excels in construction site safety fencing, scaffolding enclosures, and perimeter protection. The brown vinyl coating offers enhanced UV resistance and weather durability, while the open weave ensures visibility and airflow without compromising containment security. Providing reliable fall protection and hazard screening, it’s the optimal choice for projects demanding both safety compliance and material longevity under harsh environmental conditions.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® 300Gsm Vinyl Mesh Tarp Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 300 Gsm/m² 7 OZ/YD² | DIN EN ISO 2286-2 |
| Base Fabric | 100%PES 150D 12x10/inch | DIN EN ISO 2060 |
| Tensile Strength (warp/weft) | 360/290 N/5cm | DIN 53 354 |
| Tear Strength (warp/weft) | 100/85 N/5cm | DIN 53 363 |
| Light Fastness | >6 | DIN EN ISO 105 B02 |
| Temperature Resistance | -30℃ / +70℃ | DIN EN 1876-2 |
| Flame Retardancy (Optional) | B1, M2 | EN 13501 |
| Length(Optional) | 50M/ 100M | |
| Width(Optional) | Max 3.2M | |
| Application | Safety & Protection | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Terpal PVC Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
