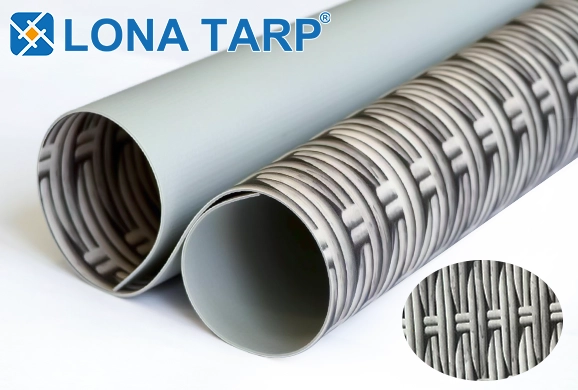

800Gsm PVC Semi-Coated Tarpaulin – LPT1062/800
800Gsm PVC Semi-Coated Tarpaulin – LPT1062/800
Engineered for premium luggage manufacturing, this heavy-duty 800gsm 500D PVC tarpaulin bag fabric features a robust 18×12 polyester weave that delivers exceptional tear strength and dimensional stability.Specifically engineered for bag manufacturing, this 500D PVC tarpaulin bag fabric offers exceptional tear resistance, waterproof protection, and enhanced abrasion performance, making it ideal for high-end backpacks, travel luggage, and protective carrying cases that demand both reliability and aesthetic appeal.
Customize this versatile 500D PVC tarpaulin bag substrate with specialized features including flame retardancy, anti-microbial treatment, or custom color matching to meet specific market needs. Its optimal weight-to-strength ratio ensures excellent sewing performance and structural integrity while maintaining flexibility for various bag designs. This cost-effective solution provides manufacturers with durable, weather-resistant material that withstands rigorous daily use while maintaining premium appearance across travel and professional applications.
Fire Retardant
Weldable
Tear Resistant
Anti-UV
Weather Ability
Longlife Time
LonaTarp® 0.65mm PVC Tarpaulin Bag Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 800 Gsm/m² 23.5 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 500D 18x20/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 1570/1283 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 357/294 N/5cm | DIN 53363 |
| Adhesion | 80 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Travel Bags | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Tarpaulin Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
