700Gsm PVC Laminated Tarpaulin – LPT1007/700
700Gsm PVC Laminated Tarpaulin – LPT1007/700

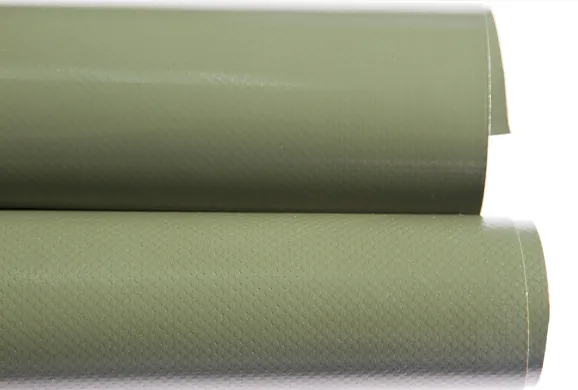

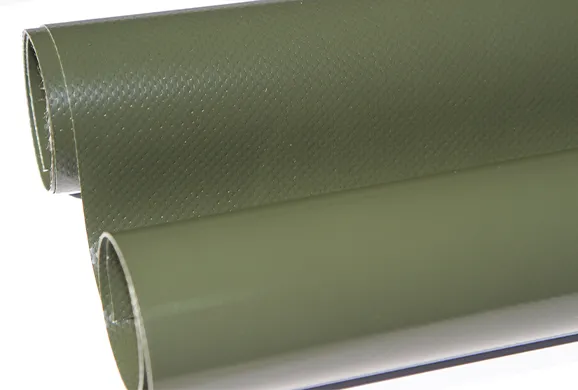

This production utilizes 700gsm PVC tarpaulin specifically engineered for flexible water containers, constructed with a 1000 Denier high-tenacity polyester base fabric woven at 20×20 threads/cm² density for enhanced puncture resistance, featuring double-sided PVC lamination that ensures complete waterproof integrity (hydrostatic resistance >10,000 mm H₂O) while providing high tear strength and tensile strength, with UV stabilization for ≥2,000 hrs outdoor exposure, low-temperature flexibility down to -30°C, and integrated anti-fungal treatment; the olive green offers camouflage functionality and environmental durability, complying with ISO 21898:2004 standards for Flexible Intermediate Bulk Containers (FIBC) and optimized for welding seam integrity in dynamic liquid storage applications including mobile water bladders, emergency response reservoirs, and agricultural irrigation systems.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® Tarpaulin 700 Gsm Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 700 Gsm/m² 21 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1000D 20x20/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 2600/2260 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 420/330 N/5cm | DIN 53363 |
| Adhesion | 100 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Flexible Containers | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
