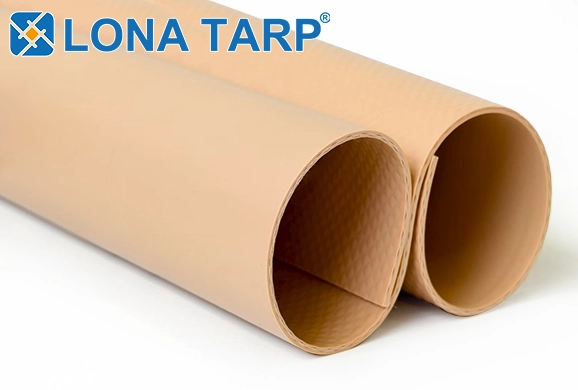

1875Gsm PVC Laminated Tarpaulin – LPT1103/1875
1875Gsm PVC Laminated Tarpaulin – LPT1103/1875
This high-performance PVC tarpaulin is specially engineered for soft biogas digesters, combining strength, durability, and long service life. With a thickness of 1.5 mm and a weight of 1875 g/m², it delivers superior tear resistance and excellent tensile strength, ensuring reliable performance even in challenging environments. The material is designed to withstand pressure, gas permeability, and exposure to outdoor conditions, making it an ideal choice for biogas storage and renewable energy projects. Its flexible yet robust structure allows for easy installation, welding, and maintenance, while providing long-term stability and safety. This makes it a cost-effective solution for modern biogas systems where durability and efficiency are essential.
Fire Retardant
Weldable
Tear Resistant
Anti-UV
Weather Ability
Longlife Time
LonaTarp® 1.5mm PVC Tarpaulin Biogas Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 1875 Gsm/m² 55 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1300Dx1500D 30x26/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 4516/3935 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 1334/1043 N/5cm | DIN 53363 |
| Adhesion | 156 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Flexible Biogas | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
