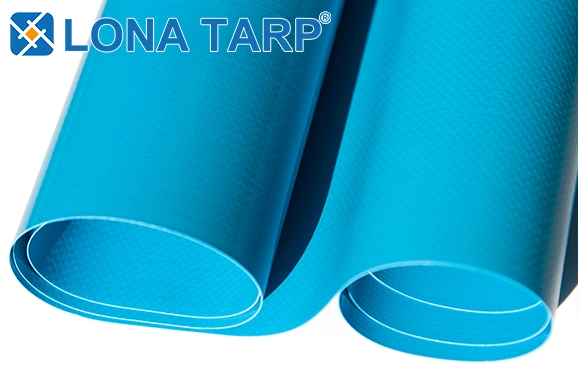

550Gsm PVC Knife Coated Tarpaulin – LPT1020-550
550Gsm PVC Knife Coated Tarpaulin – LPT1020-550
Specially designed for demanding liquid storage applications, our heavy-duty 550gsm PVC tarpaulin features a reinforced 1000D 20×20 polyester base with blue vinyl coating for superior strength. The anti-mold and tear-resistant properties ensure reliable performance in harsh environments, making it suitable for various liquid container solutions.
With competitive PVC tarpaulin 550gsm price, this material offers exceptional value for liquid bag manufacturers. The high-density structure provides excellent dimensional stability and leak prevention, while the uniform blue color allows for easy quality inspection during production. A cost-effective solution that doesn’t compromise on durability or performance.
Fire Retardant
Weldable
Tear Resistant
Anti-UV
Weather Ability
Longlife Time
LonaTarp® 0.44mm Tarpaulin Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 550 Gsm/m² 16.2 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1000D 20X20/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 2720/2260 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 440/360 N/5cm | DIN 53363 |
| Adhesion | 190 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Number of Flexes | >50,000 | DIN53359A |
| Flammability(Optional) | DIN4102:B1, NFPA701, M2 | |
| Max Width | 3.2M (10.50Feet) | |
| Application | Flexible Containers | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
