400Gsm PVC Laminated Tarpaulin – LPT1068/400

400Gsm PVC Laminated Tarpaulin – LPT1068/400

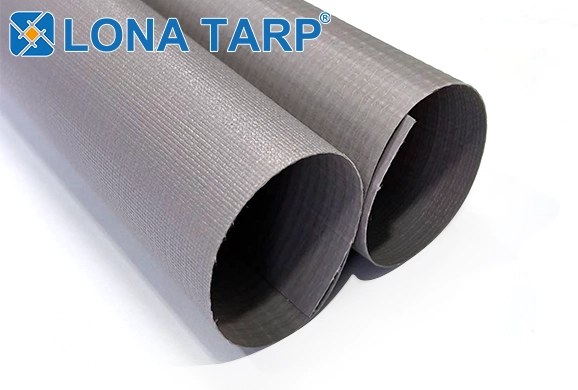

This 400gsm PVC tarpaulin is made with an 840D 9×9 polyester base and embossed grey finish. It is waterproof, oil-resistant, anti-bacterial, and mildew-proof, ensuring durability and easy processing. Ideal for bag and luggage manufacturing, this fabric offers strong performance with a lightweight structure, making it perfect for travel bags, backpacks, and protective cases.

LonaTarp® 0.38mm Weight PVC Tarpaulin Product Specifications

Fabric Properties	Parameters	Testing Method
■ Technical properties
Total Weight	400 Gsm/m² 12 OZ/YD²	DIN53352/ BS3424
Base Fabric	100%PES 840D 9*9/inch	DIN EN ISO2060/ DIN53853
Tensile Strength (warp/weft)	1060/820 N/5cm	ISO1421
Tear Strength (warp/weft)	385/290 N/5cm	DIN 53363
Adhesion	0 N/5cm	DIN 53357
Temperature Resistance	-30℃ / +70℃	DIN53372
Number of Flexes	>50,000	DIN53359A
Flammability(Optional)	DIN4102:B1, NFPA701, M2
Max Width	3.2M (10.50Feet)
Application	Modern Bag
All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures.
