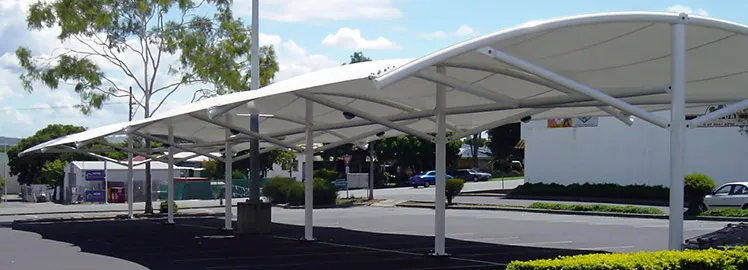

Tensioned Parking Canopy Solution

In modern urban development and commercial infrastructure, parking canopies have transcended their basic function of providing sun and rain protection. They now serve as vital architectural elements that enhance commercial value and shape corporate identity. Tensioned membrane structures (TMS), favored for their unique mechanical aesthetics and superior functionality, are replacing traditional steel-framed structures worldwide as the preferred solution for covered parking.

The PVC-coated tarpaulin, the core component of these structures, not only serves as the primary covering material but also acts as the “skin” and “muscles” of the entire system, directly determining the lifespan, safety, and distinctive visual appeal of TMS. As a professional PVC tarpaulin manufacturer and exporter, we provide an in-depth analysis of comprehensive solutions for tensioned parking canopies.

I.Advantages of Tensioned Parking Canopy Structure

Traditional parking sheds predominantly use color-coated steel plates or solar panels, which suffer from issues such as limited span, excessive columns, susceptibility to corrosion, monotonous designs, and prolonged construction periods. The tensioned membrane structure, however, has revolutionized this scenario by leveraging the unique properties and mechanical optimization of its materials.

Large-span column-free design to maximize space utilization

One of the most frustrating issues in parking lots is the excessive number of pillars, which forces drivers to repeatedly adjust their direction and even causes minor scratches. The tension structure utilizes the hyperbolic stretching properties of membrane materials, transmitting force through the membrane’s framework to achieve a column-free space with large spans.

To achieve such a vast span, the membrane material must possess exceptional tensile strength. Our industrial-grade PVC-coated tarpaulin is woven from 1000D×1000D high-strength polyester yarn base fabric, with both warp and weft tensile strength exceeding 4000N/5cm. This high-strength property ensures the membrane maintains stable integrity under extreme conditions—such as self-weight, wind pressure, and snow loads—without significant deformation or sagging, providing parking lots with spacious and secure spaces.

Lightweight structure reduces steel structure cost

The self-weight of the membrane structure is only 1/30th of that of traditional roofs. This lightweight feature not only reduces steel consumption and lowers foundation costs, but also enables carports to be constructed directly on existing parking lot surfaces without extensive civil engineering modifications.

High-quality PVC tarpaulin maintains exceptional strength while being remarkably lightweight (typically weighing 900g/m² to 1300g/m² for conventional membrane structures). This design eliminates the need for supporting structures to bear roof loads like traditional steel frameworks, reducing steel structure costs by 20%-30%. For large-scale export projects, the material is efficiently converted into rolls for container shipping. Each PVC tarpaulin roll can cover hundreds of square meters, achieving high transportation efficiency and significantly lower costs compared to steel structures.

Unique Surface Design, Enhancing Business Image

In hotels, shopping malls, and villa complexes, parking canopies often serve as the first visual focal point for visitors entering the property. The unique smooth curves and high-tension forms of tension membrane structures create a highly modern and iconic architectural language, serving as a memorable symbol that leaves a lasting impression.

Our PVC fabric surfaces are finished with matte or embossed treatments, offering customizable options to match specific requirements. The material features a smooth texture and soft visual appeal. We provide full-color customization services, including classic white, vibrant red, blue, and even metallic finishes, to meet diverse client needs. Most importantly, our dual-sided coating technology ensures consistent coloration on both sides, guaranteeing the carport maintains perfect color consistency from any viewing angle.

II.Wind and rain resistance

This “soft-over-hard” capability imposes stringent requirements on the elastic modulus and tear strength of membrane materials. Our PVC tarpaulin utilizes high-strength industrial yarns during the base fabric weaving process, ensuring superior stretchability and stress dispersion when subjected to mechanical loads. Through trapezoidal and tongue-type tear tests, the membrane surface maintains integrity even under extreme wind pressure, preventing localized cracks from propagating and providing reliable protection for vehicles.

High-frequency welding sealing achieves zero-leakage waterproofing

Water leakage is the most common quality issue in carports. The leakage points are often not in the membrane itself, but at the joints where the membranes are spliced and at the connection points between the membranes and the steel structure, which is precisely where welding techniques are required for seam repair.

We employ high-frequency heat-sealing welding technology for PVC tarpaulin assembly. This method utilizes high-frequency electromagnetic fields to generate heat through molecular friction within PVC materials, achieving molecular-level fusion. The welded seams maintain a minimum 90% strength of the original material while ensuring complete waterproof sealing. In contrast, conventional stitching often leaves needle holes that may cause leaks. Additionally, we reinforce the edges with double-layer folded edges and metal eyelets to ensure even force distribution at connection points, preventing cracks from prolonged stretching.

Surface self-cleaning treatment, resistant to acid rain and ultraviolet radiation

Industrial zones and coastal cities contain high concentrations of acidic and alkaline substances as well as salt spray in the air, posing significant challenges to the corrosion resistance of parking shed materials. Concurrently, intense ultraviolet radiation and acidic/alkaline substances can lead to material aging and discoloration.

We have added a special PVDF (polyvinylidene fluoride) surface treatment layer on top of the conventional PVC coating. Due to its superior cost-effectiveness, PVDF has become the most commonly used option today. This dense protective film offers the following advantages:

Self-cleaning property: The PVDF surface features an exceptionally low friction coefficient, making it resistant to dust and contaminants. Rainwater effectively washes away these particles, keeping the membrane surface clean and significantly reducing maintenance costs.

Chemical corrosion resistance: Effectively resists the erosion of acid rain, industrial dust and salt spray.

UV resistance: The UV absorber in the PVC slurry formula works synergistically with the surface PVDF layer to block over 98% of ultraviolet rays. This ensures the material maintains excellent flexibility and color stability for over 10 years outdoors, preventing yellowing and brittleness.

III.Design Plan of Tensioned Parking Shed

Different site conditions and usage requirements call for distinct tension structure design solutions. We provide corresponding material recommendations based on these design approaches.

Single-sided cantilevered carport

Application scenarios: Side of factory buildings, office building walls, and residential community perimeter walls. Utilize existing building walls as one support point, with the other side supported by columns.
Design considerations: The cantilever span is typically controlled at 5-8 meters, with drainage directed backward. The membrane surface must be designed with sufficient tension to prevent water accumulation and wind-induced vibrations.
PVC material selection guidelines: We recommend 900g/m² high-strength PVC tarpaulin. For cantilever structures, the load-bearing points are concentrated at wall-column junctions, requiring the membrane to exhibit exceptional tensile strength. Light-colored options (e.g., white or beige) are advised to minimize summer thermal radiation.

Double-pillar umbrella canopy

Application scenarios: Large open squares, logistics parks, public parking lots. Requires independent coverage units, which can be deployed individually or in arrays.
Design highlights: The structure features a central-high and periphery-low design, creating a natural umbrella-shaped drainage pattern. It offers stable construction and easy implementation. By adjusting the column height and membrane curvature, it generates diverse visual layers, forming distinctive coordinate symbols.
PVC Selection Guidelines: We recommend 950g/m² -1050g/m² PVDF self-cleaning PVC tarpaulin. Given the large unit area (typically 50-100 m²), the membrane surface must withstand higher snow loads and wind pressure. The PVDF surface effectively prevents dust adhesion, maintains long-term breathability, reduces high-altitude cleaning requirements, and significantly lowers labor costs and operational risks.

Option 3: Curved tensioned canopy

Ideal for: High-end hotel entrances, commercial complexes, and convention centers. Designed for exceptional aesthetics and landmark status, typically featuring bespoke solutions.
Design highlights: The structure features multiple vertical columns and side cables of varying heights, creating a hyperbolic or saddle-shaped form that mimics sculptural architecture. This design demands exceptional construction precision and seamless teamwork from the construction team.
PVC Selection Guidelines: We recommend high-strength self-cleaning PVC tarpaulin with a minimum weight of 1100g/m², available in semi-transparent or light-diffusing variants. The semi-transparent coating allows natural light penetration, creating a soft ambiance that reduces daytime illumination needs. When combined with interior lighting at night, the entire canopy transforms into a luminous structure with striking visual impact. Furthermore, such premium projects typically require compliance with Class B1 flame retardancy standards. Our flame-retardant products pass international fire safety certifications including US and European standards.

Twin-tower/herringbone-shaped carport

Application scenarios: bus stops, schools, hospitals. The design leans towards stability, with high drainage efficiency and standardized construction.
Design points: the ridge line is raised, the drainage is on both sides, and the structure is clear.
PVC material selection recommendation: We recommend 850-950g/m² PVC tarpaulin for its cost-effective performance and comprehensive functionality. Customizable with colored edges and printed logos to meet your organization’s promotional needs.

IV.Export manufacturing capacity

With 15 years of experience as a PVC tarp manufacturer and exporter, we have established partnerships with countries including the United States, Italy, Serbia, Spain, and other nations across Africa and Asia. We understand the unique market demands of each country and collaborate with global clients to successfully implement tensioned parking canopy projects.

Direct supply from source factory with end-to-end quality control

We operate a fully integrated PVC coating calendering production line and weaving workshop, with every step—from yarn procurement to finished product delivery—undergoing rigorous quality control. We strictly reject recycled materials and exclusively use virgin PVC resin powder with plasticizers, ensuring each tarpaulin roll maintains a ±5% weight tolerance. All critical parameters—including tensile strength, peel strength, and water resistance—are certified by third-party testing agencies. For export projects, we provide BV/SGS inspection reports to ensure customers’ confidence in our products.

Standardized Steel Structure Supporting, Optimizing Logistics Costs

For export shipments, PVC tarpaulins are packaged in folded or rolled configurations, wrapped in woven bags or kraft paper with an additional layer of polystyrene foam to prevent damage during transit. We provide detailed container packing diagrams to assist clients in optimizing cargo allocation and avoiding empty space.

V.Conclusion: The selection of the right PVC material is the key to the success of the tension-type parking shed.

As a professional PVC tarp manufacturer, we understand the performance of materials under various climatic conditions and design schemes. What we provide is not just a simple piece of fabric, but:

Engineering-grade strength and quality assurance: enabling large-span designs.
The enduring value of self-cleaning weather resistance: reduces maintenance costs while maintaining visual appeal for 10 years.
Perfect after-sales service guarantee: Reduce customer concerns with one-stop service from purchase to delivery port and after-sales

In conclusion, a successful tension-type parking canopy project goes beyond merely designing and constructing steel structures. The key lies in selecting high-performance PVC-coated tarpaulin. This material serves not only as a wind and rain shield but also as the foundation for ensuring structural safety, durability, and visual appeal.
