Introduction: Sunlight Durability Directly Impacts B2B Purchasing Decisions for PVC Tarpaulins

As a china PVC tarpaulin manufacturers, we understand that outdoor durability is a top concern for B2B clients.

Sun exposure causes PVC tarps to age, discolor, and become brittle, compromising end-user experience and triggering after-sales issues. Choosing high-weather-resistant PVC coated tarpaulins not only enhances your product competitiveness but also reduces hidden costs from frequent replacements.

With over a decade in the customized PVC laminated tarpaulin industry, we’ve found that >82% of B2B clients prioritize “outdoor service life” when purchasing. Whether you’re a fabricator sourcing materials, a bulk-purchasing trader, or a contractor for government projects, one critical question persists: How long will this PVC tarpaulin china truly last under real sunlight?

I. Aging Mechanism of PVC Tarpaulin China Under Sunlight

UV Radiation: PVC’s Primary Enemy

China PVC (polyvinyl chloride) coated tarpaulin offers excellent waterproofing, corrosion resistance, and flexibility.

However, prolonged UV exposure breaks molecular chains (C-Cl bond energy: 79 kcal/mol < UV photon energy), causing:

Visual Effects:▶ Chalking (gloss loss >60% after 200h QUV test)▶ Color fading (ΔE >5, visibly faded)
Mechanical Decline:▶ Tensile strength reduction (compromises load capacity, increases tearing risk)▶ Elongation-at-break reduced by >50% (becomes brittle, shortens lifespan)

Synergistic Damage from Heat & Humidity

High temperatures (>60°C) accelerate PVC oxidation, while humidity promotes plasticizer migration, further reducing flexibility.In tropical regions (e.g., Southeast Asia, Middle East), aging can be 30–50% faster than in temperate zones.When surface temperature >60°C (black tarps can reach 80°C in summer):

PVC Oxidation rate increases 3.8x per 10°C (Arrhenius equation)
Accelerated plasticizer migration (>3% detected via GC-MS)
Regional proof: Under sunlight 1 year in Dubai ≈ 5 years in Shanghai

Huge Variation in Weather Resistance by PVC Formula

Formula Type	Key Additives Missing	Lifespan (Temperate)
Economy Grade	No UV stabilizers/cheap plasticizers	0.8–1.5 years
Standard UV-Resistant	HALS stabilizers + DOA plasticizer	3–5 years
Premium Weatherproof	Nano-TiO₂ + PVDF coating + DOTP	8–12 years

Here is a blog about “PVC resin powder determines the quality of PVC waterproof tarpaulin”.

II. Heavy Tarpaulin PVC Cover Actual Service Life (Based on 300+ Global Cases)

The actual service life of heavy tarpaulin PVC cover varies significantly, with no fixed standard answer. It primarily depends on several key factors: the thickness and quality of the PVC coating, the material and strength of the base fabric (substrate), environmental conditions, usage intensity and methods, and maintenance practices. When all other factors are equal, the outdoor lifespan of heavy tarpaulin PVC cover depends on the UV resistance grade of the PVC coating.

As a custom PVC tarpaulin factory, we offer a variety of tarpaulin customization options.

Standard High Strength PVC Waterproof Cover Tarpaulins (No UV protection)

1–2 years: Fading, minor brittleness
2–3 years: Tensile strength drops 30–50%; unsuitable for high-stress use (e.g., truck covers, warehouse sheets)

UV-Resistant Tarpaulin Covers PVC (With stabilizers)

3–5 years: No significant degradation; ideal for short-term projects/temporary structures
5–8 years: Retains >80% strength; fit for long-term outdoor use (e.g., stadium covers, industrial storage)

Premium China PVC Tarpaulin Cover (Heavy-duty/coated)

8–12 years: E.g., 500gsm+ PVC with PVDF coating; withstands extreme climates (deserts, coastal high-salt areas)

III. How to Enhance Tarpaulin PVC Coated Weather Resistance?

The weather resistance of Tarpaulin PVC coated primarily refers to its ability to withstand long-term damage from natural environmental factors such as UV radiation, wind and rain erosion, temperature fluctuations, and microbiological growth. To significantly enhance the weather resistance of PVC coated canvas tarpaulin, attention must be paid at every stage—from material selection and manufacturing to scientific installation/usage and meticulous maintenance—forming a comprehensive protective approach.

Material Optimization

High-Purity PVC Resin:
Excludes recycled materials. Utilizes virgin resin to ensure stable molecular structure, establishing an exceptional foundation for weather resistance.

Weather-Resistant Plasticizers:
Employs environmentally friendly plasticizers such as DINCH, DOTP, and TOTM—selected for superior migration resistance, extraction resistance, and low-temperature tolerance—effectively preventing premature hardening and embrittlement caused by plasticizer loss.

High-Strength Base Fabric:
Uses high-density, high-denier polyester (PET) or nylon filaments as substrate, delivering exceptional tear and tensile strength as the primary defense against physical damage.

Core Functional Additives:

Integrated UV Stabilizer System: The critical defense against photo-oxidation. Requires sufficient addition of efficient UV absorbers combined with Hindered Amine Light Stabilizers (HALS) to create synergistic effects. This system absorbs harmful UV radiation and quenches free radicals. Premium tarpaulins should specify high UV resistance grades (e.g., UPF 50+).
Heat Stabilizers: Prevent thermal degradation during processing and use (especially in high-temperature environments), maintaining material stability.
Anti-Mold & Biocides: Incorporates targeted additives to effectively inhibit growth of mold, fungi, and algae in humid conditions, preventing biological degradation.
Antioxidants: Halt material aging induced by oxidative reactions.
Cold-Resistant Tougheners: Enhance flexibility at low temperatures to prevent brittleness and cracking.

Coating Tech: PVDF vs Acrylic

In the coating technology of china haining PVC tarpaulins, PVDF (Polyvinylidene Fluoride) and Acrylic are two high-end coating materials commonly used to enhance weather resistance. They exhibit significant differences in performance, cost, and applicable scenarios.

PVDF Coating:

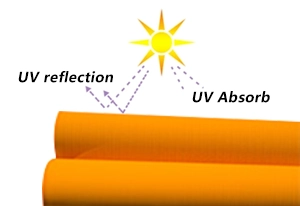

Top-tier UV resistance: The carbon-fluorine bonds in PVDF molecules possess exceptionally high bond energy, enabling effective absorption and reflection of ultraviolet light. Its resistance to UV degradation far surpasses that of standard PVC and acrylic coatings.
Lifespan up to 20-30 years: Maintains color stability and physical properties even in harsh environments (e.g., strong sunlight, high-pollution areas), with extremely low coating chalking rates.
Commonly applied in: Permanent architectural membranes (sports stadiums, airport roofs), high-end outdoor awnings, industrial storage covers requiring ultra-long lifespans.

Acrylic Coating:

UV resistance significantly better than standard PVC: With the addition of UV absorbers, it can meet the requirements for 5-10 years of outdoor use.
Good color retention: Resists fading well in the short-to-medium term, but its long-term performance is still inferior to PVDF.
Priced at approximately 1/3~1/2 of PVDF: Offers excellent cost performance.
Can be applied in: Mid-to-high-end truck tarpaulins, temporary construction barriers, agricultural greenhouses, conventional outdoor awnings.

Structural Reinforcement

≥500gsm weight resists wind/sand abrasion

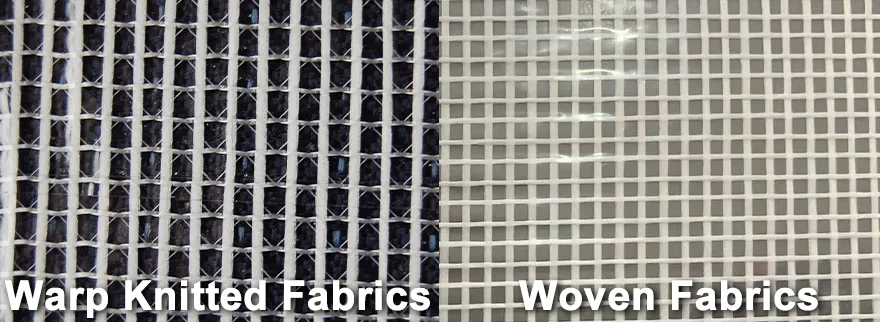

High-density warp-weft weaving enhances tensile strength, reduces stress cracking

IV. Choosing a Reliable PVC Tarpaulin Roll Factory

Selecting a reliable china PVC tarpaulin supplier is crucial for ensuring product quality, timely delivery, and stable long-term cooperation.

Throughout the entire process of screening tarpaulin roll PVC factorys, customers often face three major pain points: inflated technical specifications, supply chain fluctuations, and lagging responses to customization needs. As a PVC laminated tarpaulin roll factory with 20 years of deep expertise in the field of polymer coating materials, Lonatarp® (Haining Lonatarp Coating Materials Co., Ltd.) addresses these challenges with a reliable solution built on military-grade quality control standards and vertically integrated production capacity.

We recommend customers first conduct on-site factory inspections, prioritizing suppliers with their own factories (not just trading companies) to personally view production equipment, raw material warehouses, and quality inspection processes. Lonatarp® currently offers online virtual factory tours, showcasing production workshops, warehouses, and quality control procedures. We are also certified under the Quality Management System: ISO 9001 and hold third-party product test reports (SGS/TÜV).

We possess an independent laboratory and a team of formulation engineers, enabling us to provide customized solutions (such as adjusting coating thickness, adding antistatic agents, etc.). We also offer complimentary A4-sized samples, allowing you to perform thorough destructive testing.

V. Business Case: Why Clients Pay More for Coated PVC Fabric Tarpaulin

Fabricators: Boost end-product value

Clients can Enable premium brandingfor their product (e.g., “10-year warranty marquees”)
Clients can reduce after-sales claims & replacement costs

Traders: Differentiate & secure large contracts

Meet long-term demands of projects/government tenders
Build trust with test reports (e.g., EN ISO 4892-2 UV resistance)

Contractors: Lower Total Cost of Ownership (TCO)

Initial cost +20–30%, but lifespan 3–5x longer
Ideal for long-term rentals (e.g., exhibition tents, temporary warehouses)

VI. Conclusion: Weatherproof PVC Coated Fabric Tarpaulin = Long-Term Profit Assurance

In today’s competitive market, sunlight durability is paramount.

As specialists, we offer full-range waterproof heavy duty UV resistant PVC coated fabric tarpaulin (500–1500gsm) with PVDF/acrylic coating customization to help you:
