680Gsm PVC Sem-Cotead Tarpaulin – LPT1110/680
680Gsm PVC Sem-Cotead Tarpaulin – LPT1110/680
This 680gsm semi-coated tarpaulin is manufactured with a durable 500D 18×17 polyester base fabric, providing excellent tensile strength, tear resistance, and weather endurance. Designed for versatile applications such as tensile structures, shading systems, canopies, and industrial coverings, it delivers reliable waterproof protection and long-term stability in demanding outdoor environments. The semi-coated finish ensures a smooth surface, easy maintenance, and lasting performance under sun, rain, and wind.

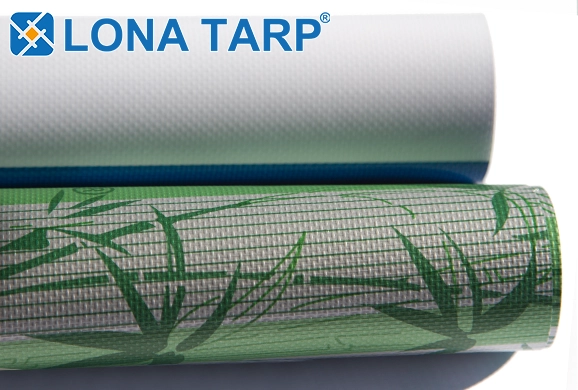

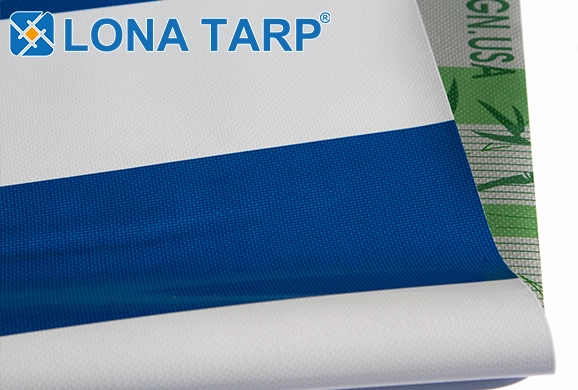

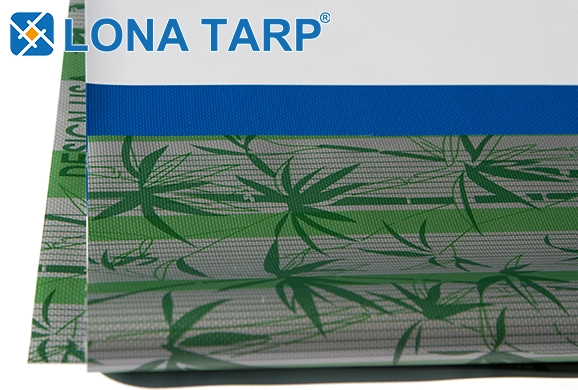

As a glossy or matte printable pvc coated tarpaulin, it offers outstanding printability for high-resolution graphics and customized branding, combining strength with visual creativity. Its balance of durability, flexibility, and refined appearance makes it an ideal solution for architects, event organizers, and manufacturers seeking a cost-effective material that enhances both functional reliability and aesthetic value.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® 0.54mm Glossy or Matte Printable PVC Coated Tarpaulin Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 680 Gsm/m² 20 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 500D 18*17/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 1411/1297 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 297/258 N/5cm | DIN 53363 |
| Adhesion | >74 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Color Fastness | ≥Grade 6, 1000hours | ISO 4893-2 |
| Impermeability | No Leaking (Unit: 0.3Mpa 3H) | |
| Thermal Dimensional Change | 0.2%-0.3% (Unit: -80℃ 6H) | |
| Application | Striped Awning | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Tarpaulin Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
