650Gsm PVC Laminated Tarpaulin – LPT1101/650

650Gsm PVC Laminated Tarpaulin – LPT1101/650

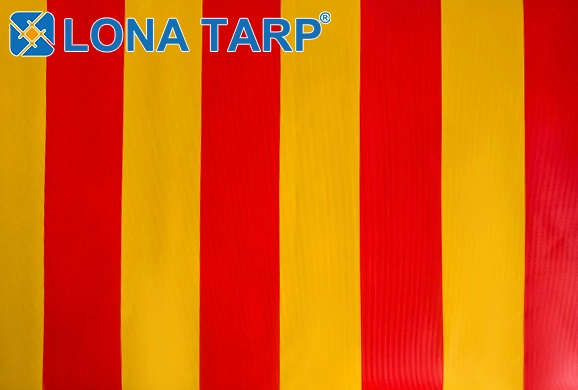

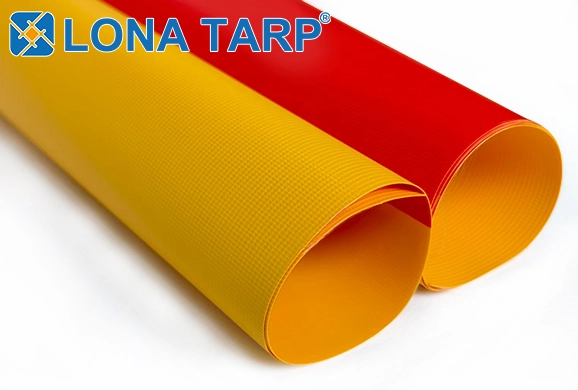

Engineered for high-performance shading solutions, this durable 650gsm PVC laminated striped tarpaulin features a robust 1000D polyester base with tight 18×18 weave construction, delivering exceptional tensile strength and tear resistance. The advanced lamination process ensures complete waterproof protection, enhanced UV resistance (UPF 50+), and superior colorfastness for outdoor longevity, making this PVC laminated striped tarpaulin ideal for commercial awnings, patio covers, and architectural shading systems requiring vibrant aesthetics and reliable weather protection.

Customize this versatile PVC laminated striped tarpaulin with specialized properties including flame retardancy (B1/B2 standards), anti-mildew treatment, or custom stripe patterns to meet specific project requirements. Its balanced combination of visual appeal and structural durability ensures excellent sewing performance and wind resistance, providing awning manufacturers with a cost-effective material that maintains vibrant stripe definition while withstanding prolonged sun exposure, heavy rain, and temperature fluctuations from -30°C to 70°C.

LonaTarp® 0.52mm PVC Laminated Striped Tarpaulin Product Specifications

Fabric Properties	Parameters	Testing Method
■ Technical properties
Total Weight	650 Gsm/m² 19 OZ/YD²	DIN53352/ BS3424
Base Fabric	100%PES 1000D 18*18/inch	DIN EN ISO2060/ DIN53853
Tensile Strength (warp/weft)	3069/2860 N/5cm	ISO1421
Tear Strength (warp/weft)	451/360 N/5cm	DIN 53363
Adhesion	＞100 N/5cm	DIN 53357
Temperature Resistance	-30℃ / +70℃	DIN53372
Color Fastness	≥Grade 6, 1000hours	ISO 4893-2
Impermeability	No Leaking (Unit: 0.3Mpa 3H)
Thermal Dimensional Change	0.2%-0.3% (Unit: -80℃ 6H)
Application	Striped Awning
All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures.
