650Gsm PVC Laminated Tarpaulin – LPT1100/650
650Gsm PVC Laminated Tarpaulin – LPT1100/650

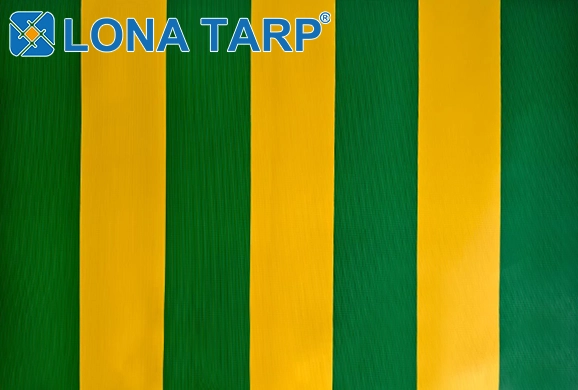

our 650gsm PVC coated strip tarpaulin is crafted with a high-strength 1000D 18×18 polyester base fabric that ensures outstanding durability, flexibility, and resistance to outdoor stress. Featuring a vibrant striped design and semi-gloss finish, it combines reliable waterproofing and exceptional tear resistance with an appealing aesthetic, making it suitable for both commercial and residential applications. This PVC coated strip tarpaulin can be customized with enhanced UV protection, flame retardancy, or other specialized treatments to meet diverse environmental demands.
Ideal for sunshade canopies, awnings, and event coverings, this tarpaulin balances robust performance with visual elegance. Its vibrant stripes retain their color under constant exposure to sunlight, wind, and rain, while the material’s structural stability ensures long-term use in outdoor leisure spaces, market stalls, garden shelters, and more. Combining strength, style, and adaptability, this PVC coated strip tarpaulin offers both protection and design value for a wide range of professional and personal uses.

Fire Retardant

Weldable

Tear Resistant

Anti-UV

Weather Ability

Longlife Time
LonaTarp® 0.52mm PVC Coated Strip Tarpaulin Product Specifications
| Fabric Properties | Parameters | Testing Method |
| ■ Technical properties | ||
| Total Weight | 650 Gsm/m² 19 OZ/YD² | DIN53352/ BS3424 |
| Base Fabric | 100%PES 1000D 18*18/inch | DIN EN ISO2060/ DIN53853 |
| Tensile Strength (warp/weft) | 3069/2860 N/5cm | ISO1421 |
| Tear Strength (warp/weft) | 451/360 N/5cm | DIN 53363 |
| Adhesion | >100 N/5cm | DIN 53357 |
| Temperature Resistance | -30℃ / +70℃ | DIN53372 |
| Color Fastness | ≥Grade 6, 1000hours | ISO 4893-2 |
| Impermeability | No Leaking (Unit: 0.3Mpa 3H) | |
| Thermal Dimensional Change | 0.2%-0.3% (Unit: -80℃ 6H) | |
| Application | Striped Awning | |
| All technical data set out above are for product information purposes only and not legally binding, and will cease to apply with any further development of the products. The most recent technical data will be provided by LonaTarp® on request. Please note that the technical data as set out above are average values only. All values are generated through tests by established laboratories in accordance with industry standards. Results may vary if testing is executed by different laboratories or due to different standard interpretation. All technical data apply to new products only. Deviations may occur due to production procedures. | ||
Try LonaTarp® Customize Your Tarpaulin Now
- PVC Formulation Properties
- Strength, Weight and Thickness
- Glossy, Matte, Color, Print and 3D Embossed Patterns
- Tarpaulin Roll Sizes and Packaging
- Cutting, Heat Sealing, Sewing, Add Eyelets, and Accessories Purchasing
